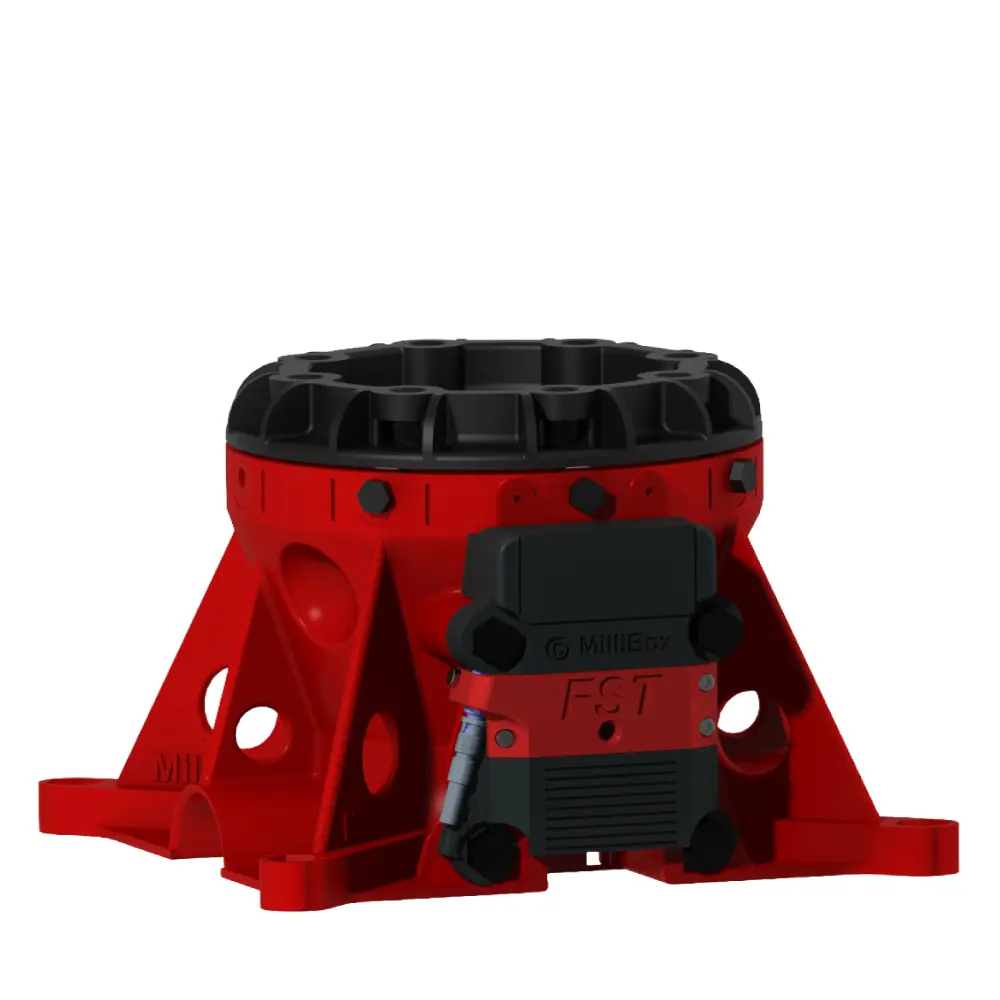

Fast Synchronized Trigger (FST) upgrade kit for GIM04/GIM05
Fast Synchronized Trigger (FST) option provides a real-time external trigger signal to the VNA to enable continuous 3D data capture.
Select this product to upgrade an existing non-FST GIM04 or GIM05 with this option.
Please specify your existing GIM04 or GIM05 model and your VNA manufacturer.
You may also be interested in...
-
GIM05 – 3-axis spherical roll modular antenna positioner
Add to Quote This product has multiple variants. The options may be chosen on the product page -
GIM04 – 2-axis HV modular antenna positioner
Add to Quote This product has multiple variants. The options may be chosen on the product page -
GIM05A – 1-axis azimuth-only turntable modular antenna positioner
Add to Quote This product has multiple variants. The options may be chosen on the product page -
GIM04E – sub-THz HV positioner with frequency extender mount
Add to Quote This product has multiple variants. The options may be chosen on the product page
FAST SYNCHRONIZED TRIGGER (FST) OPTION- This option provides a BNC connector which carries the real-time trigger signal and connects to the VNA’s trigger input. The MilliBox positioner controller software configures the instrument in external trigger mode and initiates capture at user specified angular intervals on the fly. As a result, the positioner sweeps horizontally and vertically continuously in a zigzag pattern and collects all the data directly from the instrument without pausing, which reduces the sweep capture time significantly.
Select this product to upgrade an existing non-FST GIM04 or GIM05 with this option.
